TS008 A型高速多股并纱机简介:
TS008A HIGH SPEED DOUBLING MACHINE
可用于棉、毛、丝、麻及其混纺各类纱线3-12股并合(选配)。采用新技术集成的电气控制系统和模块化设计,性能更优越、更稳定、更可靠,速度更快。不仅仅可为倍捻机、捻线机加工平形筒子,而且可加工成宝塔型筒子供无梭织机 作纬纱使用
Usd in assembly varity of yarns, such as cotton ,wool, linen, filament, doubling the yarn from 3ply to 12 ply. The electrical control system and modular design are integrated with high and new technology. Better performance, more stable, more reliable, speed faster. It used to do the yarn preparation for TFO, twisting machine, loom etc.
技术配备参数:
TECHNICAL CONFIGURATION
筒管规格 | 230MM-280MM(170MM可选配) |
结构 | 单面机,每台(4-60)锭,可以定制 |
电源 | 三相380V 50/60HZ 或者V220 |
驱动 | 单锭独立马达驱动 (交流/直流) |
消耗功率 | 370瓦/锭 |
成型筒子 | 圆形柱/锥形 |
纱线速度范围 | 300-1000m/min |
定长装置 | 可编程控制器(PLC)集中控制/显示计长 |
断纱自停装置 | 电子断纱自停/锭 |
调速装置 | 变频调速 |
电子防重叠装置 | 标配 |
整机照明装置 | 标配 |
2-12股纱线后置纱架 | 选配 |
空气捻接器(纱线无结头) | 选配 |
吹吸风清洁器(去除灰尘) | 选配 |
精准定重装置(电子秤/锭) | 选配 |
特殊定制 | 2锭,4锭, 8锭 |
BOBBIN LENGTH | 230MM-280MM(170MM OPTIONAL) |
LAYOUT | SINGLE SIDE, 4-60 SPINDLES/SET, CUSTOMIZABLE |
POWER | 3 PHASE 380V OR SINGLE PHASE 220V 50/60HZ |
DRIVE | INDEPENDENCE FOR EACH SPINDLE |
POWER CONSUMPTION | 370W/SPINDLE |
TAKE UP PACKAGE | CONE-CYLINDRICAL |
WINDING SPEED | 300-1000m/min |
WINDING LENGTH | SET BY PLC, MONITOR DISPALY YARN LENGTH |
AUTO STOP | ELECTRONIC YARN STOP DEVICE |
SPEED ADJUST | BY INVERTER |
OVERLAPPING | ELECTRONIC OVERLAPPING SYSTEM |
LIGHTING DEVICE | YES |

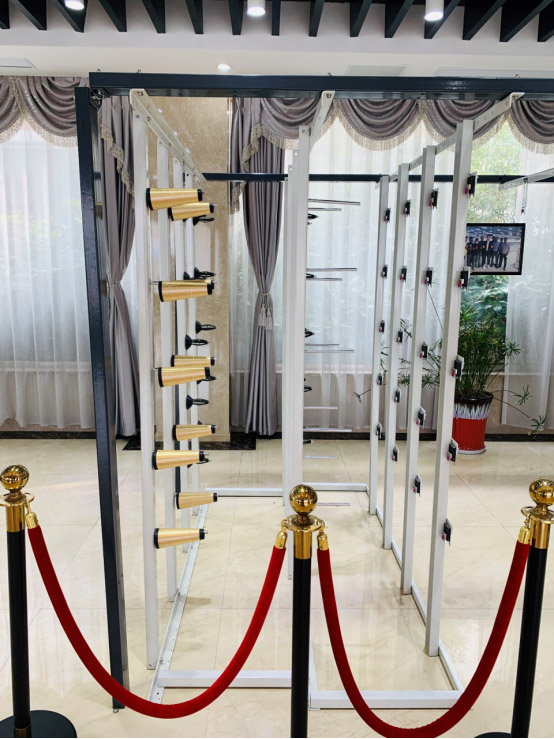

EXTERNAL CREEL | 2-12 PLY OPTIONAL |
AIR SPLICER | OPTIONAL |
CLEAN TRAVELLER | OPTIONAL |
WEIGHT MEASUREMENT | OPTIONAL |
SPECIAL CUSTOMIZED | 2,4,6,8 SPINDLE |
